2 Pin 10mm Solderless LED Strip Connector - 10 Pack for Flexible LED Light Strips | Gapless Snap Design, 5A Max Current | Perfect for Home Lighting, DIY Projects & Cabinet Underlighting
Free shipping on all orders over $50
7-15 days international
23 people viewing this product right now!
30-day free returns
Secure checkout
82704791
Description

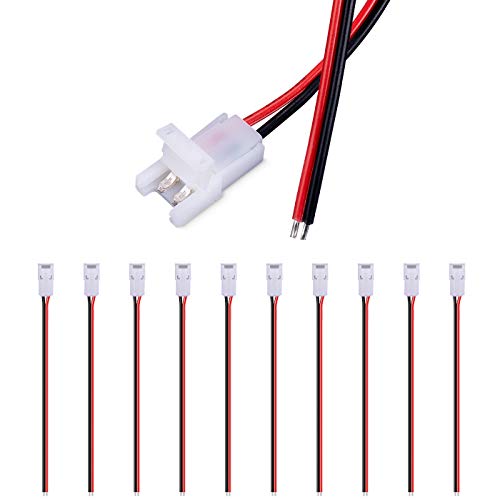

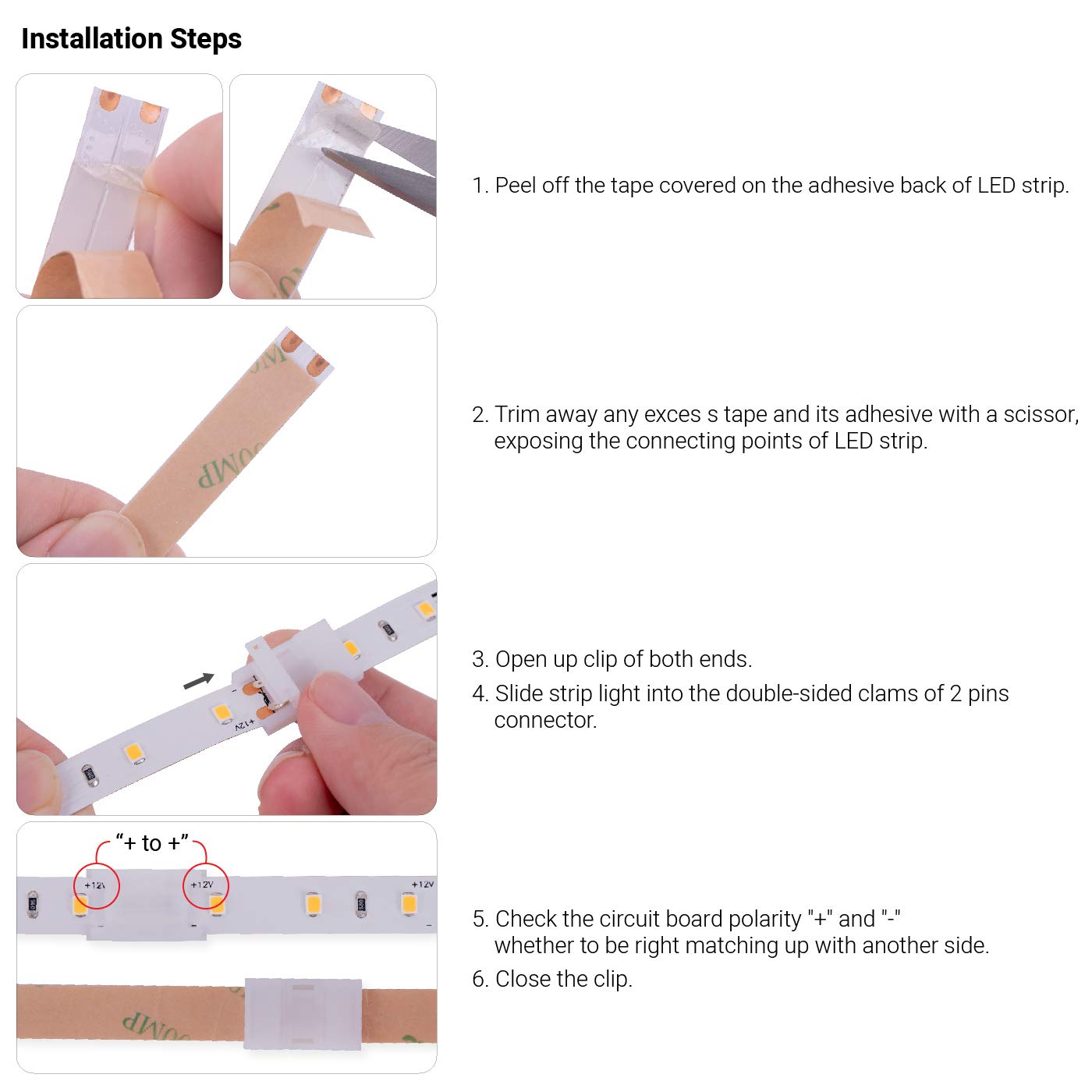

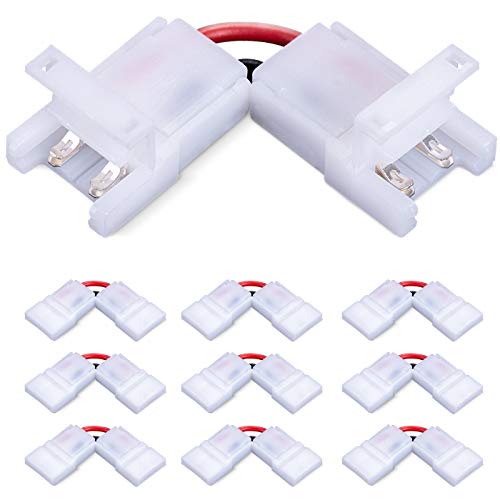

Product Feature Rated Voltage : 12V-24V DC, 120V AC Rated Current : 5A PC Heat Resistance : 150°C Operating temperature :-20~ 80°C. Pull-out Fource: >50N Material: PA66 UL 94-0. Installation guide Open up clip on each sidePeel off the tape covered on the adhesive back of LED stripSlip strip light into the double-sided clams of 2 pins connector, check the circuit board polarity"+ -" whether to be right matching up with another side.Close the clip Strip connector L shape strip connector Adapter connector with 15cm wire Strip to strip jumper connector DC Adapter Cable 5m led strip light (1200lm/m) Add to Cart Add to Cart Add to Cart Buying Options Buying Options Add to Cart Customer Reviews 4.4 out of 5 stars 169 4.4 out of 5 stars 169 4.4 out of 5 stars 169 4.4 out of 5 stars 169 4.4 out of 5 stars 169 4.4 out of 5 stars 169 Price $6.99$6.99 $8.99$8.99 $7.99$7.99 — no data — no data $13.99$13.99 Wide 10mm 10mm 10mm 10mm 10mm 10mm Pins 2 pin 2 pin 2 pin 2 pin 2 pin 2 pin Rated Current 5A 5A 5A 5A 5A 5A
Features

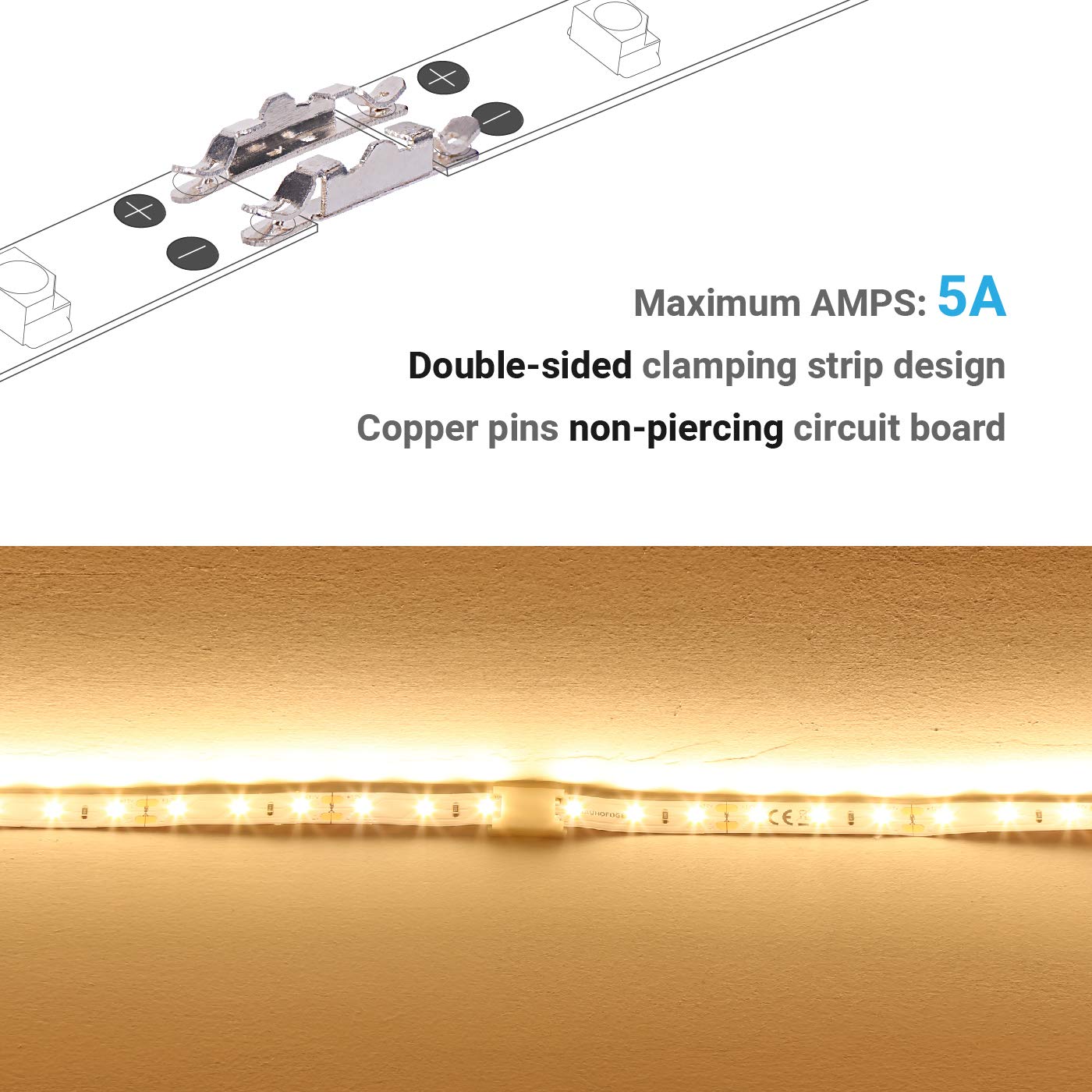

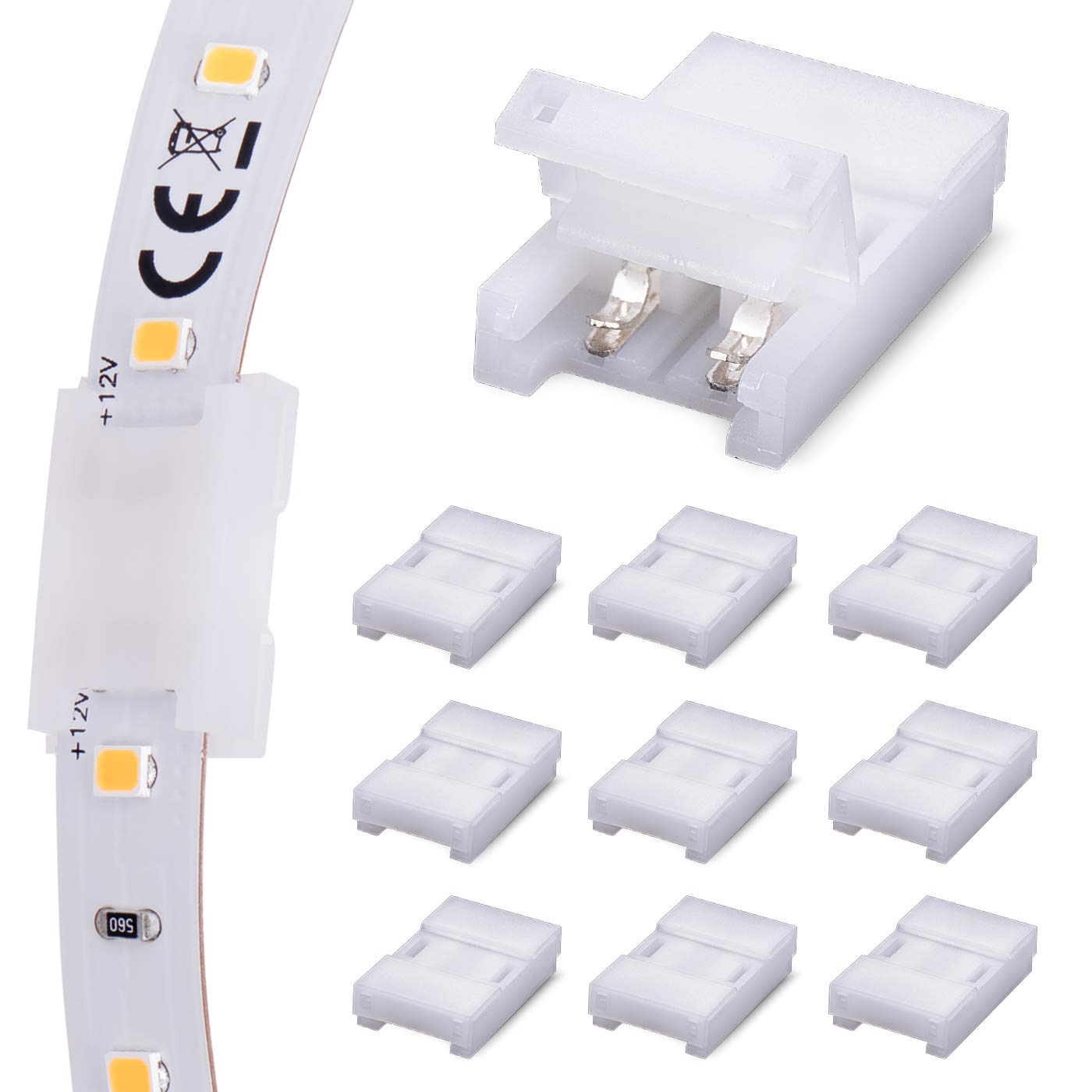

These NEW LED strip connectors from JAUHOFOGEI are designed to be double-sided clamping strip design, copper pins non-piercing circuit board, and to make solderless, tight, secure connections between two sections of strips together with ease.
Maximum AMPS 5A, handle higher amperage without failure at higher wattage of LED strips. Good to keep current straightly running wiithout making the latter sections to lose the lumens they should have.
Mechanical locking deisgn. It is with low insertion force when sliping a strip into the connector and high locking retention to prevent the strips from faliing off, compatible with any type of 10mm wide LED strips, SMD 2835, 3825, 5050, and more.
Small body design prevent shadows from appearing in the LED lighting, and able to be flexibly used in narrow space, such as the linear aluminum profiles inside.
The item can be reused many times. Rated voltage DC 12V - 24V, 120V AC. PC heat resistance 150°C. Operating temperature -20~ 80°C. Material PA66 UL 94-0. CE Approved and RoHS compliant.
