MAGMINI SURFACE TRACK SET - Magnetic Building Toy for Kids STEM Learning | Perfect for Home, Classroom & Travel Play

Linear Specifications

• Dimensions: L: 367mm / 667mm x H: 10mm
• Light Source: LED Included
• Wattage: 3W / 6W
• Lumen: 135lm / 280lm
• Kelvin: 3000K
• CRI: 90
• Beam Angle: 60˚
• Dimmable: As per selected Driver

Spotlight 38˚ Specifications

• Dimensions: Diam: 35mm x H: 55mm
• Ceiling Dimensions: 57mm x H: 10.5mm
• Light Source: LED Included
• Wattage: 1W / 5W
• Lumen: 74lm / 425lm
• Kelvin: 3000K
• CRI: 90
• Beam Angle: 38˚
• Dimmable: As per selected Driver

Spotlight 15˚- 45˚ Specifications

• Dimensions: Diam: 35mm x H: 55mm
• Ceiling Dimensions: 57mm x H: 10.5mm
• Light Source: LED Included
• Wattage: 5W
• Lumen: 160lm - 15˚ / 400lm - 45˚
• Kelvin: 3000K
• CRI: 90
• Beam Angle: 15˚ - 45˚
• Dimmable: As per selected Driver

Notes:

• This set includes:
  - MAGMINI TRIMLESS TRACK BLACK 2000mm
  - MAGMINI SINGLE BLACK POWER FEEDER UNIT
  - 4x MAGMINI TRACK LINEAR 3W or 6W or MAGMINI SPOTLIGHT 1W or 5W with Beam Angles of 38˚ or 15˚ - 45˚
  - HC - LED DRIVER 30W, 24V CONSTANT VOLTAGE

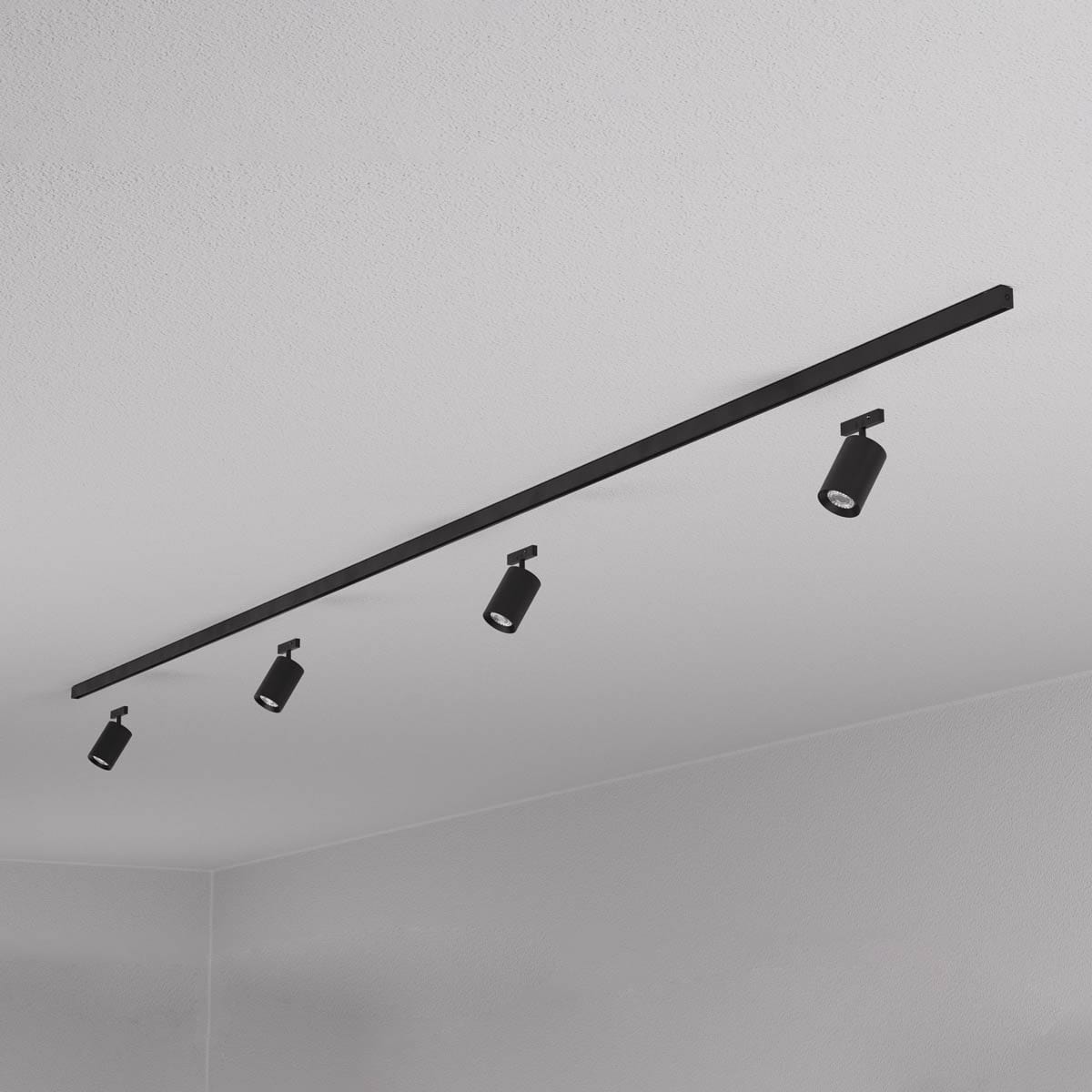

• Suitable for mounting on ceilings or walls with length up to 2000mm and can be cut down to size or joined for longer lengths.
• Trimless track offers solutions to compose curved profiles with 90˚ curve connectors as standard with custom solutions for 45˚ and 180˚ available for special order upon request.
• for other customisation or configuration.
