RGBW LED Light Strip Controller - 4 Channel Touch Panel Dimmer for DC12V-24V 16A RGB/RGBW LED Strips | Wall-Mounted Smart Lighting Control | Perfect for Home Theater, Bedroom Mood Lighting & DIY LED Projects
Free shipping on all orders over $50
7-15 days international
14 people viewing this product right now!
30-day free returns
Secure checkout
17099220
Description

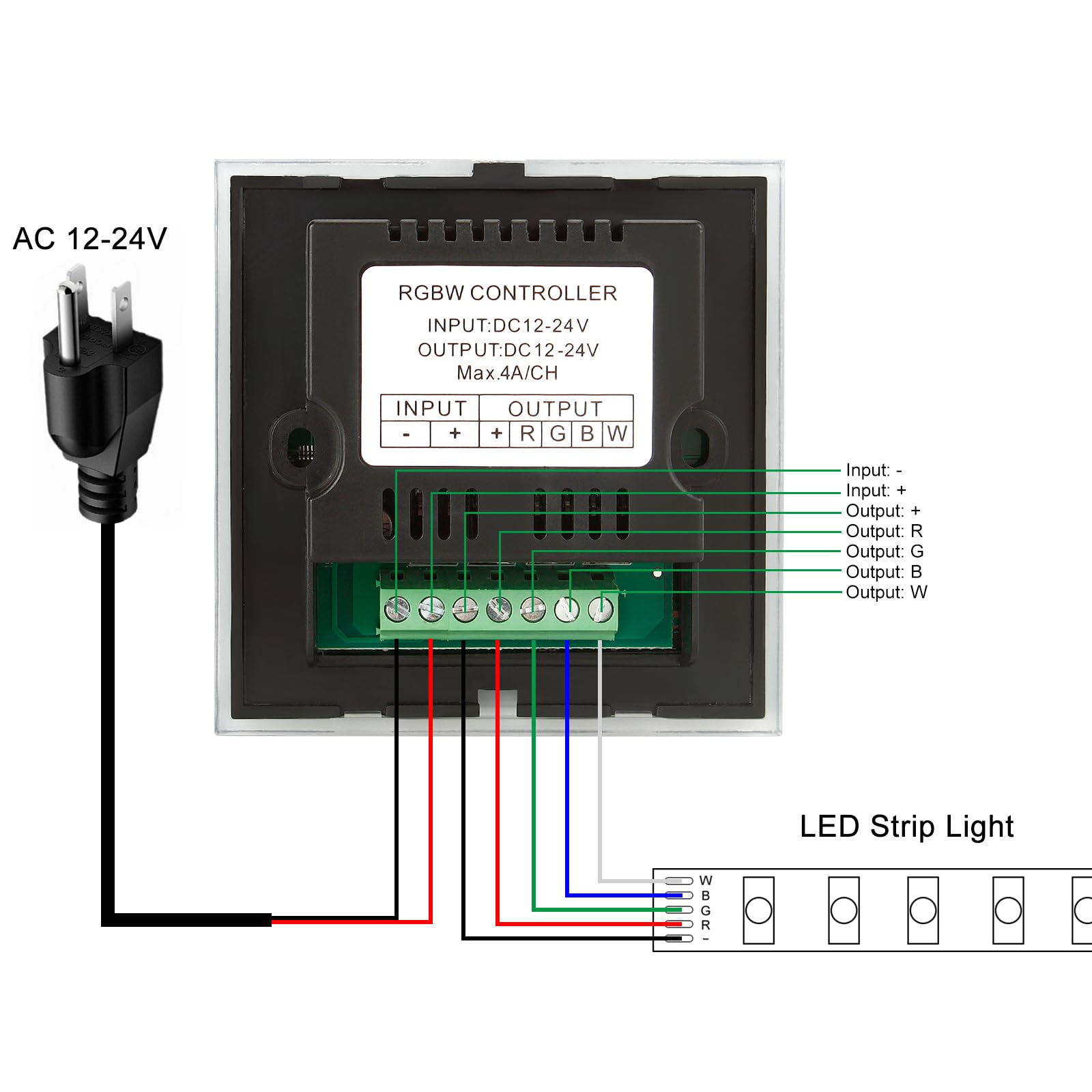

12V-24V 4*4A LED Dimmer Echnical Parameters: Working Temperature: -20 C-60℃ Supply Voltage: DC12-24V Output: 4 channels Connectian mode: common anode Static Power consumption: <1W Output Current: <4A(each channel) Output Power: 12V<192W, 24V<384W Touch Ring: It is not a glass material, but is made of ABS plastic material with strong heat resistance, impact resistance and super hardness.Color changing and dimming smooth. High sensitivity. · If you connect RGB LED strips and want white light,you can press 'R+G+B' respectively, you will get mixedwhite light. · If you connect an RGBW LED strip and want white light,you can directly press 'W' and you can get pure white light. Changing Mode: * Static Red * Static Green * Static Blue * Static Yellow * Static Purple * Static Cyan * Static White * RGB Skipping * 7 Colors Skipping * RGB Smooth * 7 Colors Smooth Previous page Input voltage=Output voltage For example, DC12V 5050 LED Strip ,must use DC12V power supply Next page 1 wiring Diagram 2 Installation Method 3 Mode Change 4 Touch Panel It is used for controlling a variety of lamp whose sourceo flight is LED, for Instance, point source of light, flexible light strip, wall washer lamp glass curtain wall light etc.. LED Dimmer Switches RGB LED Dimmer Controller Add to Cart RV LED Dimmer Switch Add to Cart RF Panel LED Dimmer Add to Cart RF RGB LED Controller Add to Cart Frequency LED Dimmer Add to Cart Single Color LED Dimmer Add to Cart Customer Reviews 3.7 out of 5 stars 90 3.7 out of 5 stars 29 3.5 out of 5 stars 37 4.6 out of 5 stars 16 4.3 out of 5 stars 426 4.3 out of 5 stars 426 Price $19.99$19.99 $12.99$12.99 $23.99$23.99 $21.99$21.99 $15.99$15.99 $12.99$12.99 Input Voltage DC12V-24V DC12V DC5-24v DC5-24v DC5-24v DC5-24v Output Channel <4A(Each Channel) 5A 2*15A 2*15A 2*15A 2*15A Output Power 12V<192W, 24V<384W 12V 60W 5V 150W,12V 360W,24V 720W 5V 150W,12V 360W,24V 720W 5v 100w, 12v 280w, 24v 400w 5V 150W,12V 360W,24V 720W Item Dimensions LxWxH — 2.17 x 1.38 x 2.95 inches 3.54 x 2.28 x 1.89 inches 3.54 x 2.28 x 1.89 inches 3.46 x 2.05 x 1.18 inches 5.51 x 2.95 x 1.89 inches Working Temperature -4 to 140℉(-20 to 60°) -4 to 140℉(-20 to 60°) -4 to 140℉(-20 to 60°) -4 to 140℉(-20 to 60°) -4 to 140℉(-20 to 60°) -4 to 140℉(-20 to 60°)
Features
?.???? ??? ????? ?????? ?????????? DC 12V-24V working voltage, output current <4A(each channel), 4A/channel, output power 12V<192W,24V<384W. It can the same time control RGB and white LED light strip.

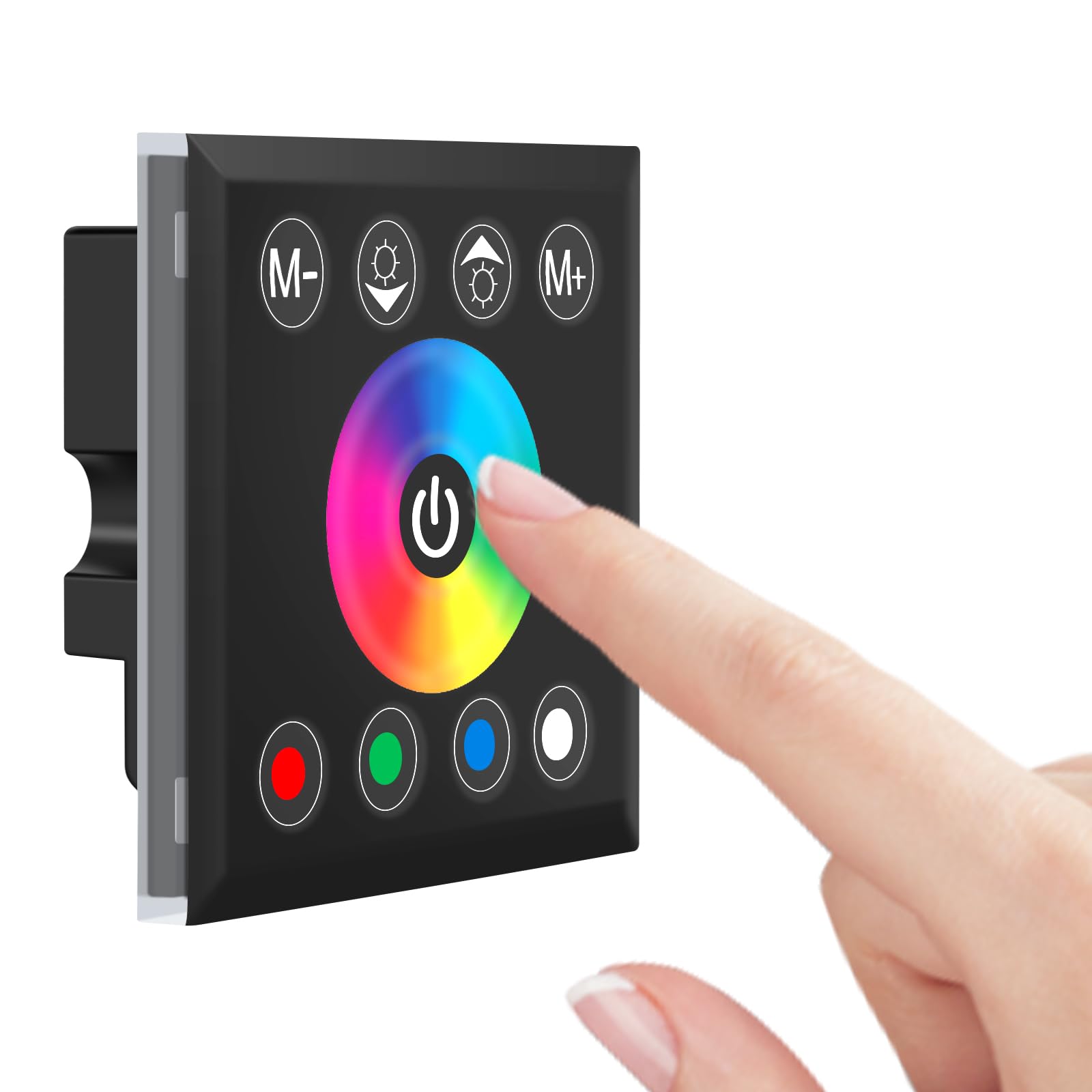

?.????? ?????? ???? ??? ?????? LED dimmer with touch panel is smooth and easy to clean. Good anti-squeeze and anti-scratch properties. It adopts high precision capacitance touch control chip, increases the touch sensitivity reduces wrong trigger which caused by mistake.
?.?????? ??????????? & ????? 'R''G''B''W' four buttons are set separately, you can easily adjust the color you want. And this touch panel dimmer switch can easy to adjust brightness and control dynamic modes for led strip lights, such as Fade, Fade + Flash, Times, Strobe, Flash, Auto-cycle.

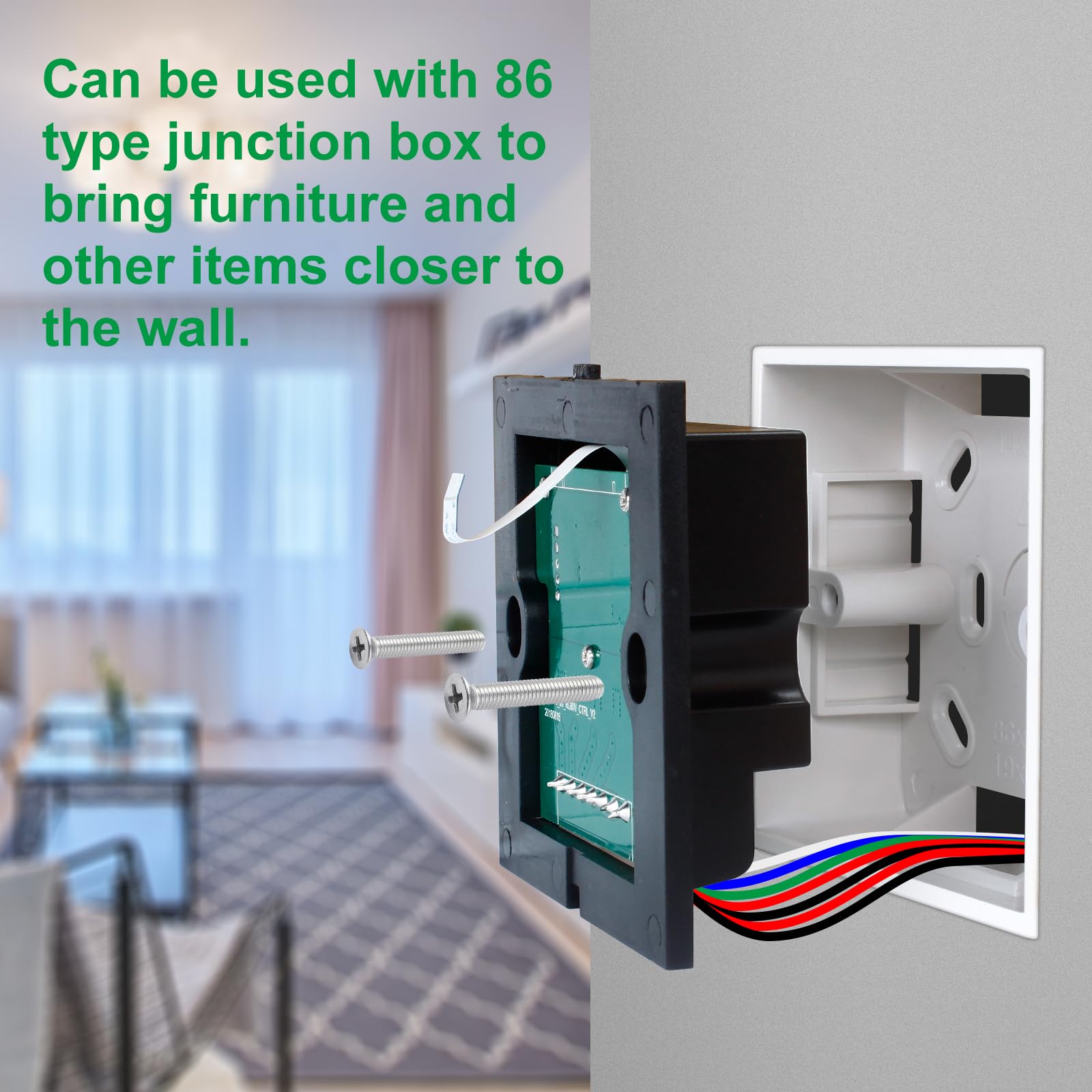

?.???? ?? ??????? & ??? Touch panel provides a quick and easy way to connect LED strips, Easy to install, remove and use. Suitable for commercial or home standard Type 86 switch socket bottom boxes. Elegant appearance, classic rectangular controller body, it is a perfect decorative wall switch.
?.?????? ?????????? Save user setting when power off, when you turn it on again, the controller will retain the light mode settings from before you turned it off. It is used for controlling a variety of lamp whose sourceo flight is LED, for Instance, point source of light, flexible light strip, wall washer lamp glass curtain wall light etc. Packaging List 1× RGBW Touch Panel LED Controller and 1× User Manual.
