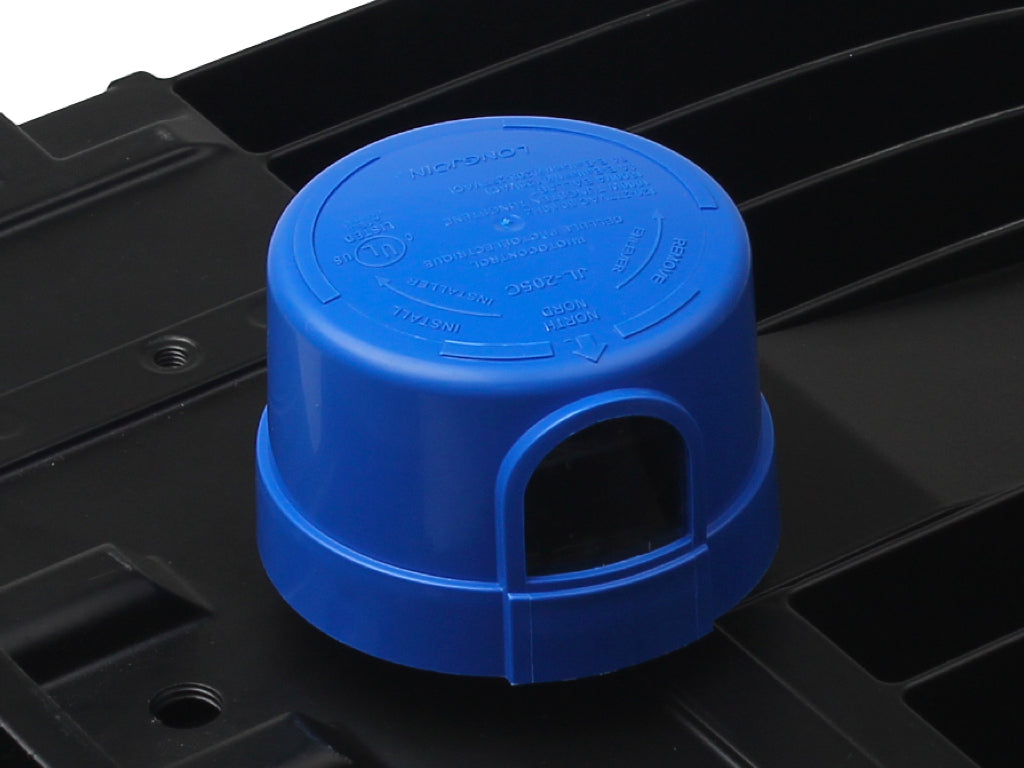

Photocell Twist Cap Dusk to Dawn Light Sensor - Replacement for Shorting Cap Models - Perfect for Outdoor Lighting, Security Lights & Landscape Illumination

THIS PHOTOCELL IS FOR MULTI VOLTAGE (110-277V)

The photocontroller is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level, and midnight sleeping timer settings. This product is designed with microprocessor circuits with either sensors of CdS photocell, photodiode or IR-filtered phototransistor and a surge arrester (MOV) is provided. Its quicker response with time delay of 3-20 seconds for turning-on and offers an easy-to-test feature. This photocell has the  avoid mis-operation due to spotlight or lightning during the night time. The –HP version provides constant reliability as the relay has sufficient work life of over 50,000 hours of lighting and offers extra long work life when a metal Armor option is applied together. This product meets the requirements of ANSI C136.10-2010 and the Standard for Plug-In.

*Not compatible with 480V High Voltage units

Specifications

SKU: 106-100049

Twist Lock: Yes

Surge Arrester: Built In

Rated Frequency: 50/60Hz

Rated Loading: 1000W Tungsten, 1800VA Ballast

Power Consumption: 1.5VA [3VA for -HP]

Overall size: 3.3"x 2.6"

Warranty: 1 year

Installation
