3000 Lumens Solar LED Street Light with Remote Control - Outdoor Security Lighting for Driveway, Garden, Pathway & Backyard

2019 | CLEANIE AWARD | GOLD RECIPIENT

What are All In One street lights?

All In One (AIO) street lights are used for ease of install in all applications. The term is coined since the Solar Panel, LED Light, Battery, Mounting material, and Inverter are all designed and configured to fit into one fixture. This reduces installation cost, eliminating digging, trenching, and using heavy solar panels to sit on top of poles. Moreover, to provide a high quality LED light, the solar lights include cutting edge technology in solar and LED advancements to date.

Features

• Smart Remote Functionality - programmable lighting modes to satisfy most applications.
• Adaptive Lighting System to achieve full night lighting if the weather changes, this is known as constant current output.
• Variable Frequency Technology controls and adjusts the LED driver frequency to reach the max output of LED and Battery.
• Temperature Control Systems to Protect the battery charging and discharging in high temperatures.
• 10 hours for a full charge battery by standard sunlight. Once the battery is fully charged, it can support 3 nights of lighting.
• LED (OSRAM) 3030 - 190 lumens/w (40 LED Chips).
• Button Switch, ON/OFF Long Press 1.5 seconds.

Preset Lighting Modes in More Detail:

M1

20% brightness + PIR (full brightness for 30 seconds) for 12 hours - once you click on this mode, it will stay in M1 until the setting is changed.

M2

65% brightness for 5 hours  + PIR (full brightness for 30 seconds) for 5 hours + 45%. This will stay in M2 until the setting is changed.

M3

45% brightness for 12 hours

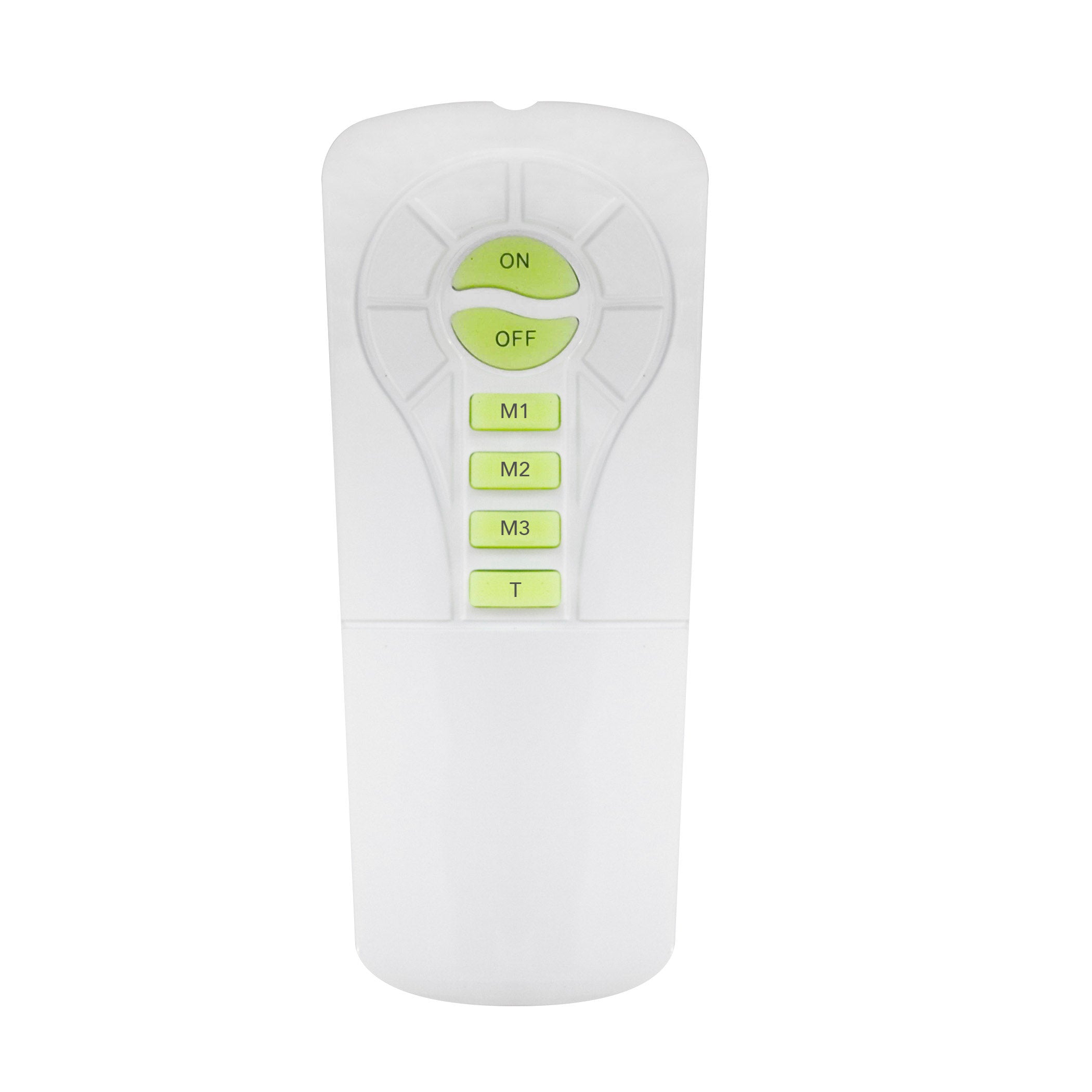

Lighting Modes Via Controller

• You can choose different brightness for whole night 10%, 30%, 60%, 100%. (Not recommended since the 100% lighting mode of full brightness can use the entire battery in 1 night)
• You can choose different brightness and time 1/2/3/4/6*/8* hours (ex. 30% for 4 hours)  - once the selected mode is completed, it will automatically initiate M2 for the remainder of the night. This mode has a memory function, therefore it will keep same light every night until you change it to another mode.

*To access 6 and 8 hours, simply move the switch from OFF to ON next to the batteries on the back of the remote, under the protective cap. If switched to "ON", T1 = 2hrs, T2 = 4hrs, T3 = 6hrs, T4 = 8hrs.

Note: The pole is not included.

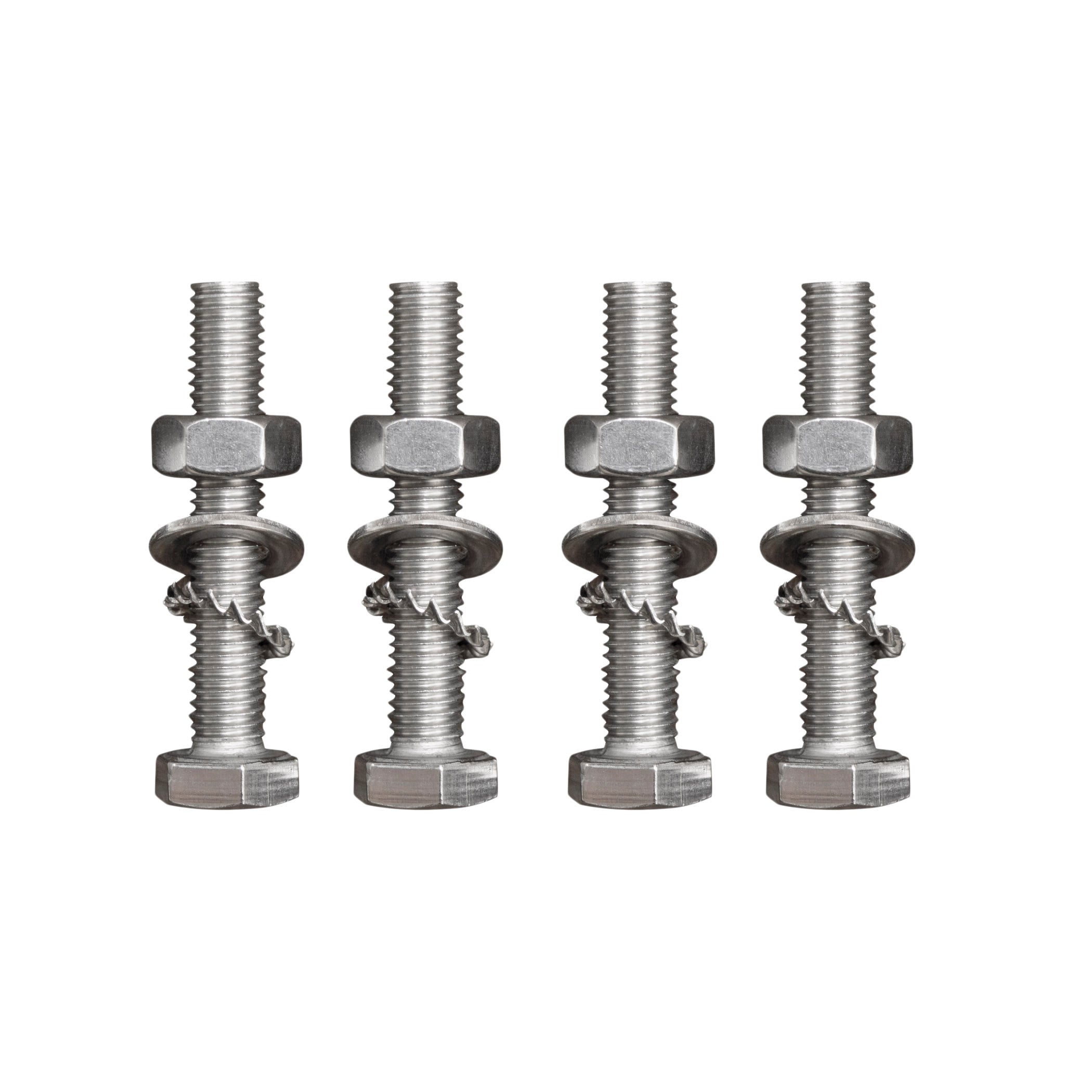

This product does include the mounting hardware.

Product Spec Sheet

Click to view the Product Spec Sheet.

IES File

Click  to view IES File.
